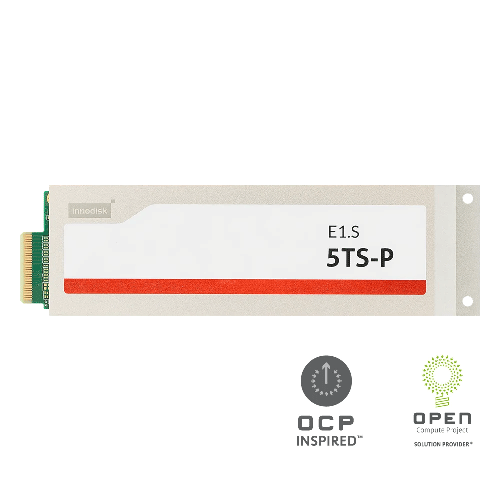

E1.S 5TS-P
特長
- 読み取り最大14GB/s、書き込み最大10GB/sの優れたパフォーマンス
- 単一のE1.Sドライブで最大7.68TBの高ストレージ密度
- 1DWPDの耐久性および5年間の保証で長期信頼性を実現
- PLP（iCell）テクノロジー – データ保護（オプション）
仕様
| Model Name | E1.S 5TS-P |
|---|---|
| Flash Type | 3D eTLC |
| Interface | PCIe Gen 5 x4 |
| Form Factor | E1.S |
| Capacity | 1.92TB ~ 7.68TB |
| Sequential R / W (MB/sec, max.) | 14,000 / 10,000 |
| TBW (Max.) | 14,000 (Enterprise Workload) |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 25W |
| Max. Channels | 16 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Series | Data Center SSD |
| Dimension (W x L x H/mm) | 9.5mm : 33.75 x 118.75 x 9.5 15mm : 33.75 x 118.75 x 15.0 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | 1500G@0.5ms |
| MTBF | 2 million hours |
| Warranty | 5 Years |
注文情報
| 動作温度 | 標準温度 (0°C ~ 70°C) |
| 1.92TB | DSE1S-1T9IX&#CAH@P% |
| 3.84TB | DSE1S-3T8IX&#CAH@P% |
| 7.68TB | DSE1S-7T6IX&#CAH@P% |
Operating temperature based on temperature obtained from S.M.A.R.T.
& : 1 = Standard / 2 = TCG Opal
# : Flash mode
@ : F = Kioxia / H = Micron
% : H = 9.5mm enclosure / H1 = 15mm enclosure
E1.S 5TS-P specifications are subject to change.
